Anycubic Kobra S1 Drawer – Modular Two-Compartment Storage with Poop Bin, Gridfinity Tool Tray & Rear Waste Pipe
Printable in PETG or PCTG
Drawer
Printable on the Kobra S1
A drawer unit with two compartments: one for the poop, which can be divided into sections, and another for tools featuring Gridfinity-style boxes. It includes a rear waste pipe and side mounts for up to 8 print plates, and it's fully compatible with Hula feet.
This model is designed to be printed in three color tones if you have an ACE Pro; otherwise, the drawer fronts will be single-color.
It features:
-
Hidden-handle fronts on both drawers for a clean, sleek look.
-
A poop drawer with two internal boxes to maximize available space.
-
A tool drawer based on the 42 mm Gridfinity system for modular organization.
-
A rear waste pipe for scrap and filament debris.
-
Mounting points for installing Hula Feet for added stability.
The rear waste pipe doesn’t require any magnets for installation—just snap the tube sections together and slide the pipe into the slot built into the back of the drawer chassis.
To maintain some visual continuity with the printer, there's a matching air intake detail on the rear of the drawer unit.
If you plan to install the Hula Feet, you'll need 5 of them to ensure maximum stability and proper weight distribution for the printer.
The drawer frame includes pre-drilled holes on both sides, allowing you to mount a plate holder on the left, right, or both sides. This gives you space to store up to 8 print plates.
The print plate holder features a beautiful logo dedicated to your awesome Kobra S1, along with recessed areas designed to hold double-sided foam tape—keeping the plates firmly in place and helping to eliminate any unwanted rattling.

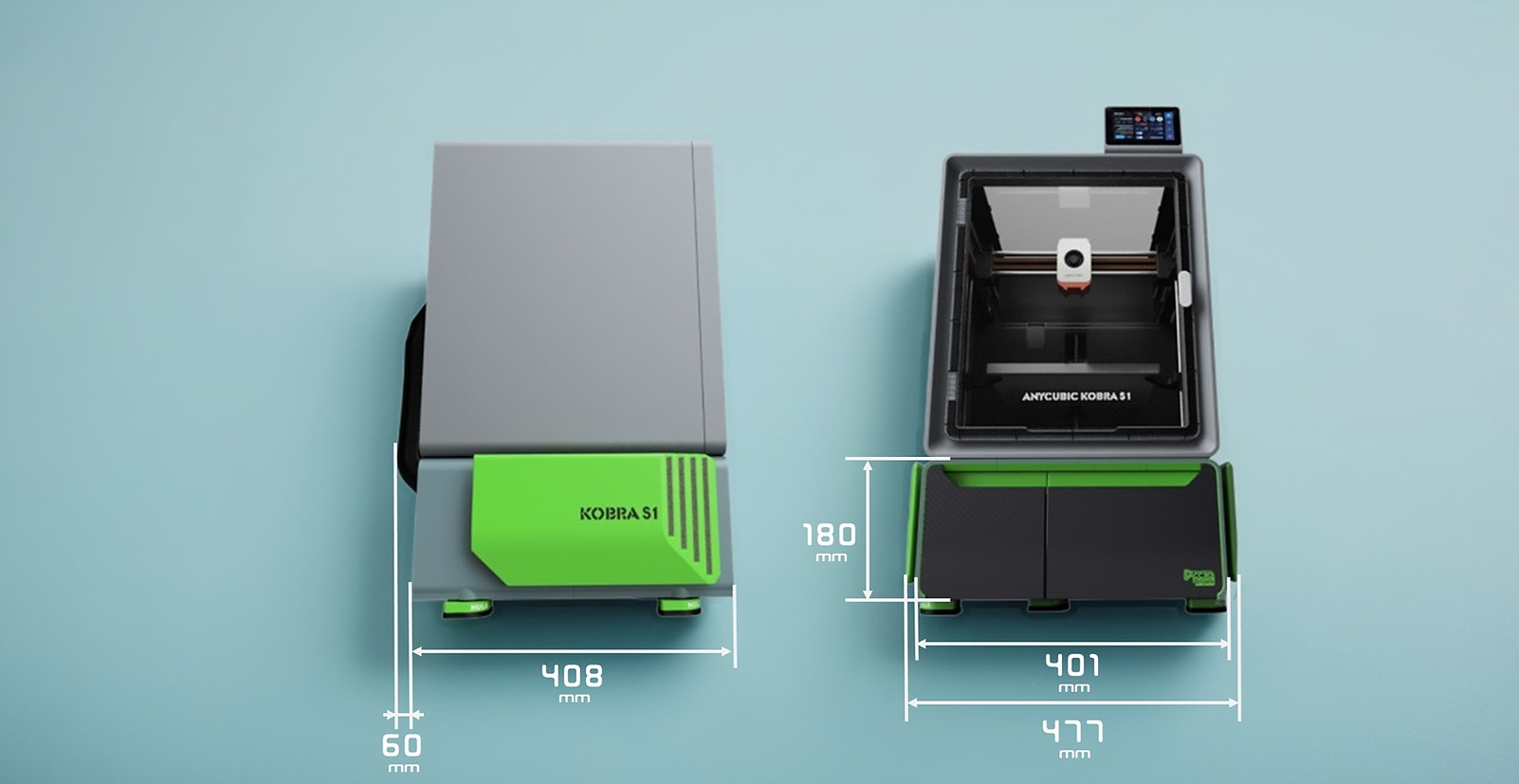

Compared to drawers made for other printers, I’ve aimed to minimize the height to just 180 mm, as you can see below.
The top of the drawer unit features a rounded edge that mirrors the one on the printer itself, creating a more unified look between the drawer and your machine.
For the front panels, I like to print
them using textured build plates with a
arbon fiber finish—I absolutely love the result.
You’ll also notice a frame surrounding the drawers, which
you can print in two colors if you're using Anycubic’s AVE system.
DRAWER: Filament Usage & Print Time
PETG
430 g
PETG
1.3 Kg
PETG
1.9 kg
PETG
560 g
Print Time
6d 15h 50m
"Just a quick note on quantities: the numbers shown refer to a full print of the drawer, including both print plate holders. If you increase the infill, the required amounts will vary, so treat these as rough estimates for how much filament you’ll need.
It’s always best to load the files into your slicer and run a full estimate for all plates."
