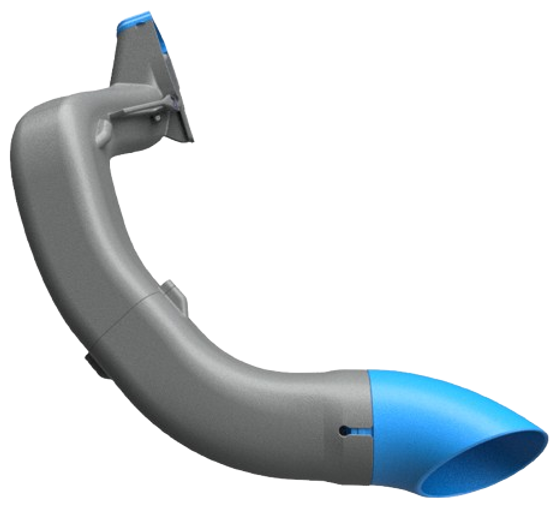

POOPE Single Pipe
PIPE THAT DISPOSES POOPS EXTERNALLY INTO A SIDE BIN ON THE LEFT OF YOUR PRINTER!
SIMPLE AND PRACTICAL SOLUTION TO HANDLE YOUR POOPS!
UNIQUE FEATURES OF THE MODEL
#1
#1
THE DESIGN STRIKES THE RIGHT BALANCE BETWEEN PERFORMANCE AND SIZE.
AFTER MANY TESTS, THE 130 MM DEPTH WAS THE ONLY SOLUTION THAT CONSISTENTLY PREVENTED OBSTRUCTIONS.
THE TOP CAP IS REMOVABLE TO ALLOW ACCESS INSIDE THE PIPE IF NEEDED.
ALL CURVES WERE TESTED TO PREVENT CLOGS OR BLOCKAGES IN THE PIPE.
THE PIPES ARE ASSEMBLED USING THE USUAL 14 MM M4 SELF-TAPPING SCREWS.
THE PIPE IS ATTACHED TO THE PRINTER USING COMMON MAGNETS, TYPICALLY USED FOR BADGES.
​
​SECURE THE PLATES WITH THE MAGNETS INTO THE DESIGNATED SLOTS, USING SOME QUICK-DRYING GLUE.
THE DIFFERENT PARTS ARE LABELED WITH NAMES TO HELP YOU DURING ASSEMBLY.
THE FINAL PIPE DUCK CAN BE ROTATED 360 DEGREES TO BETTER ADAPT AND DIRECT THE POOPS INTO THE BASKET.
TWO COLORS AND TWO BUILD PLATES ARE ALL THAT'S NEEDED TO PRINT THIS MODEL.
.png)
THE MOUNTING PROCESS IS QUITE SIMPLE.
FIRST STEP: PLACE THE MOUNTING TEMPLATE FOR THE METAL PLATES AND APPLY THEM TO THE BACK OF YOUR PRINTER.
REMOVE THE TEMPLATE, AND YOU SHOULD HAVE THIS RESULT:
THREE PLATES SECURED IN THESE POSITIONS.
(TYPICALLY, BADGE MAGNETS SHOULD HAVE DOUBLE-SIDED ADHESIVE ON ONE SIDE)
NOW FOR THE FINAL STEP: ATTACH THE PIPE TO THE BACK OF THE PRINTER BY ALIGNING THE PLATES WITH THE MAGNETS, AND YOU'RE DONE!
TIME AND MATERIALS REQUIRED
.png)
18h 35m
PRINT TIME
15m
ASSEMBLY
0.5 KG
FILAMENT
